Bays 60 PCB
Design

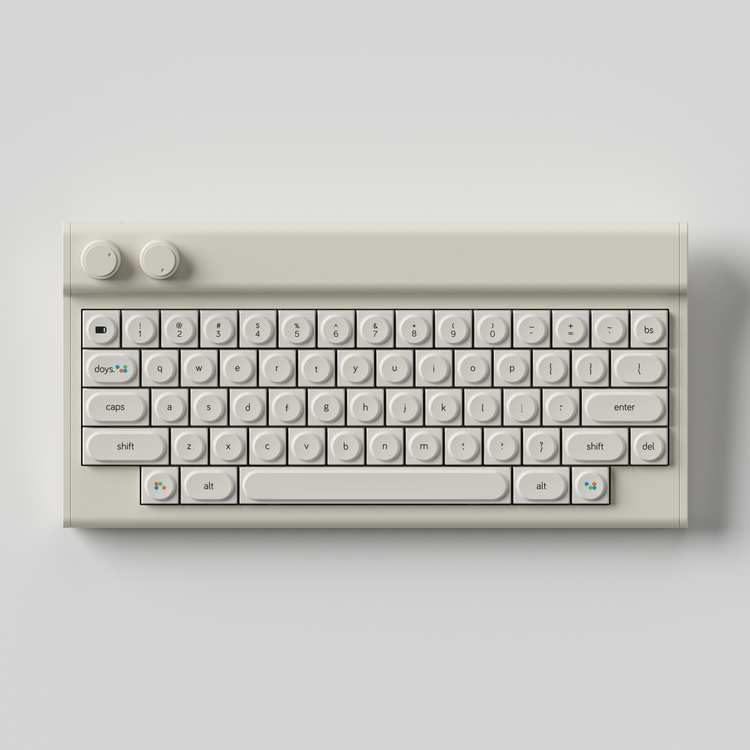

The design draws the inspiration from the process of creating a non-toy layout for Doys keycaps, with the aim of providing a docking harbor for Doys keycaps.
Bays60 makes the extraction of the practical dual-knob section from DoysPad, keeping the design language of size and shape while integrating a wrapping and surrounding form. The current design has been achieved after extensive adjustments and combinations.
Kit Specification

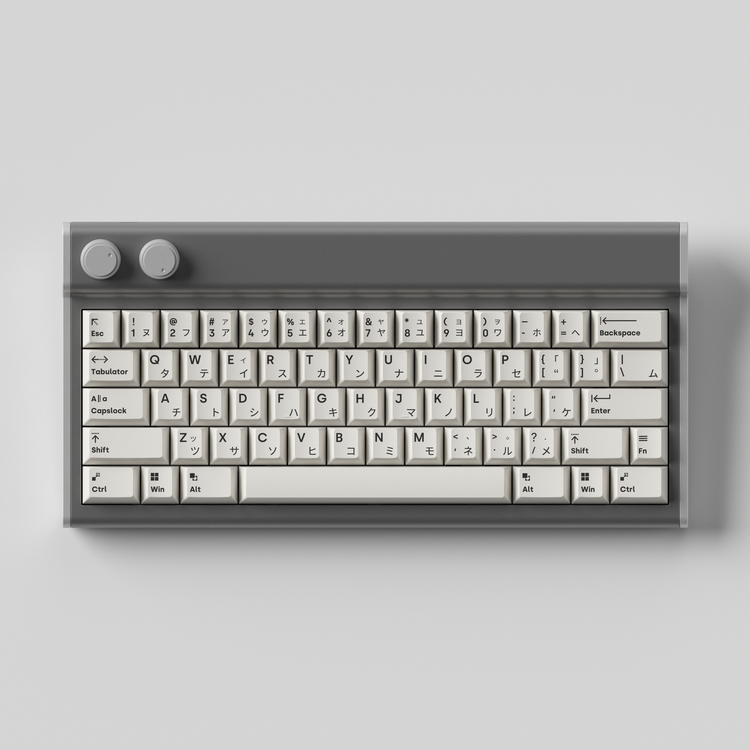

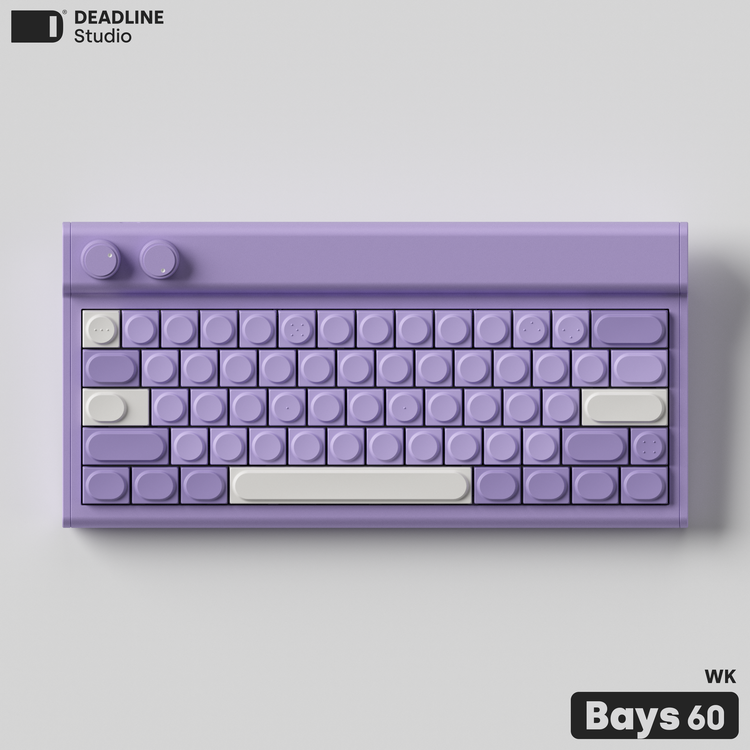

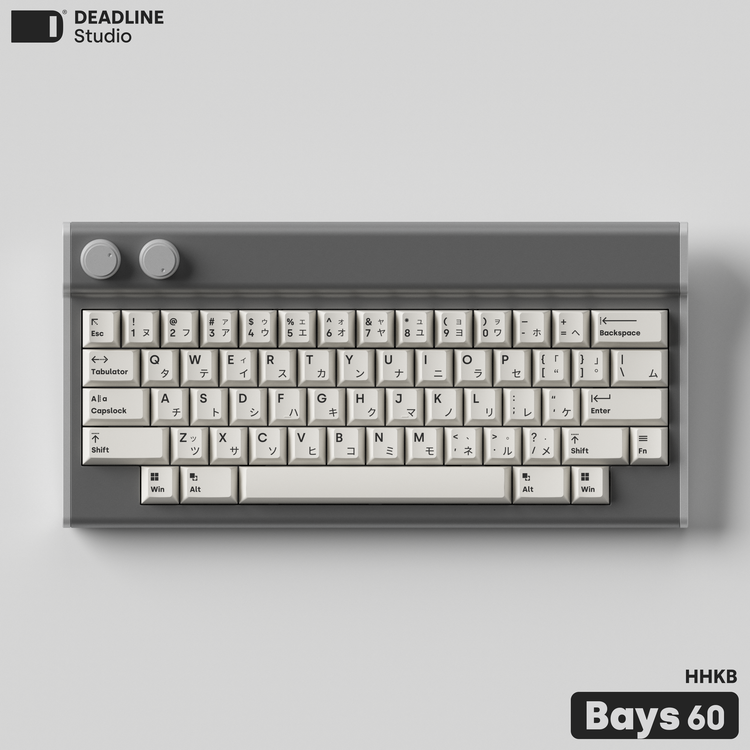

Layout：WK/HHKB

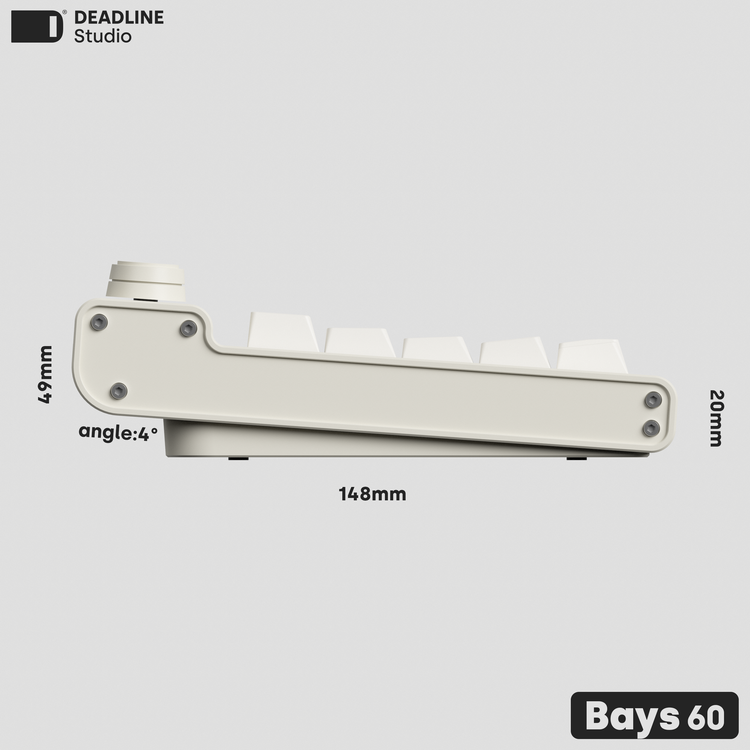

Typing angle ：4°
Typing height：20mm
Mount：Bottom

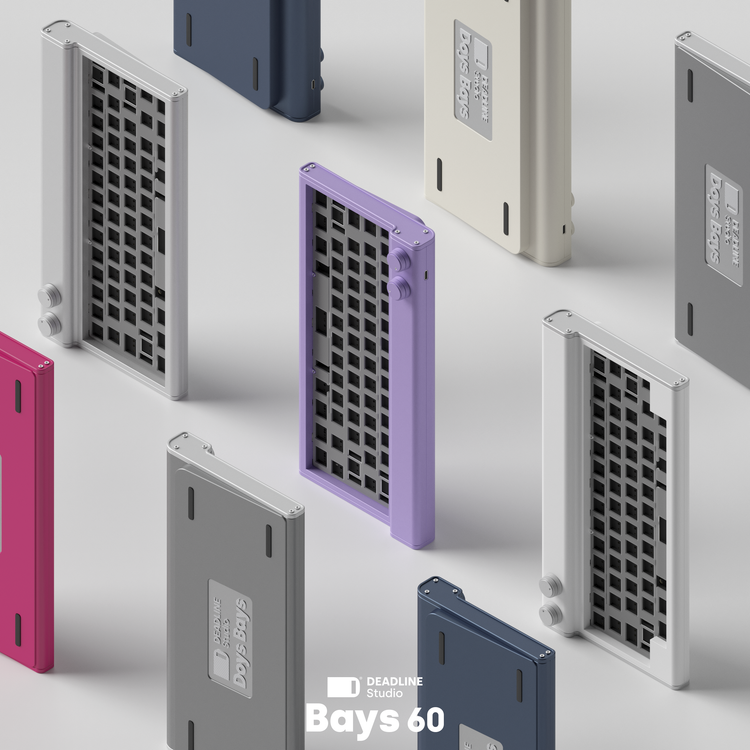

Color Option

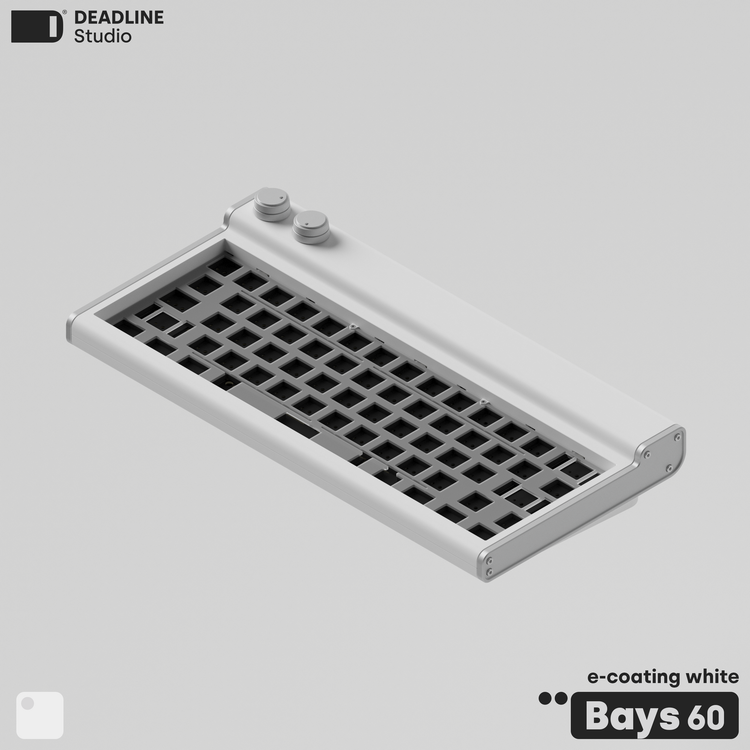

1. E-coating/White

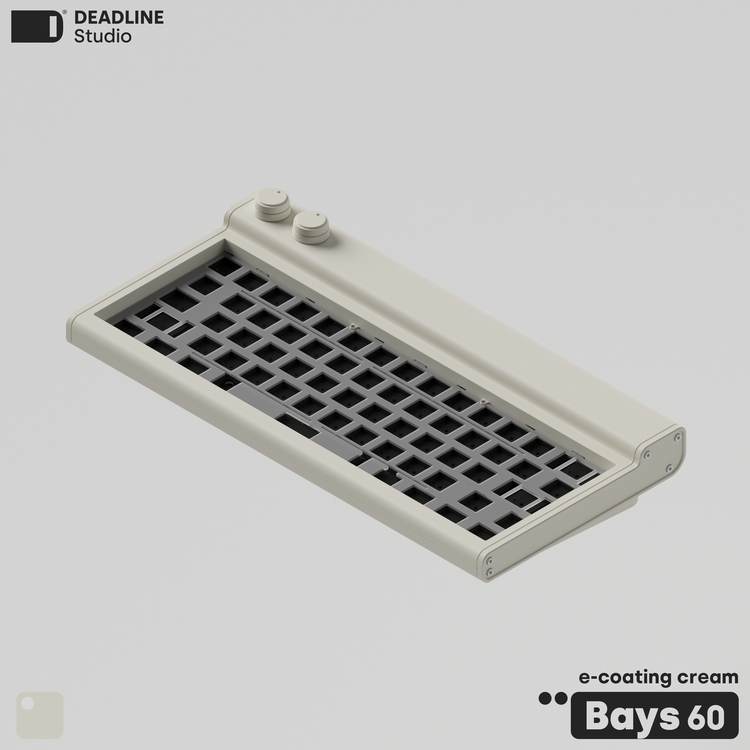

2. E-coating/Cream

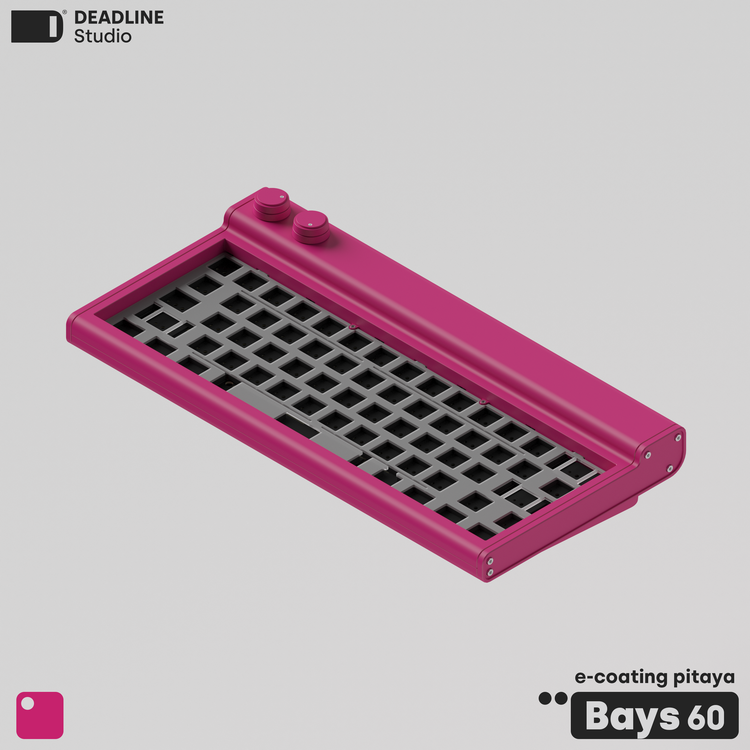

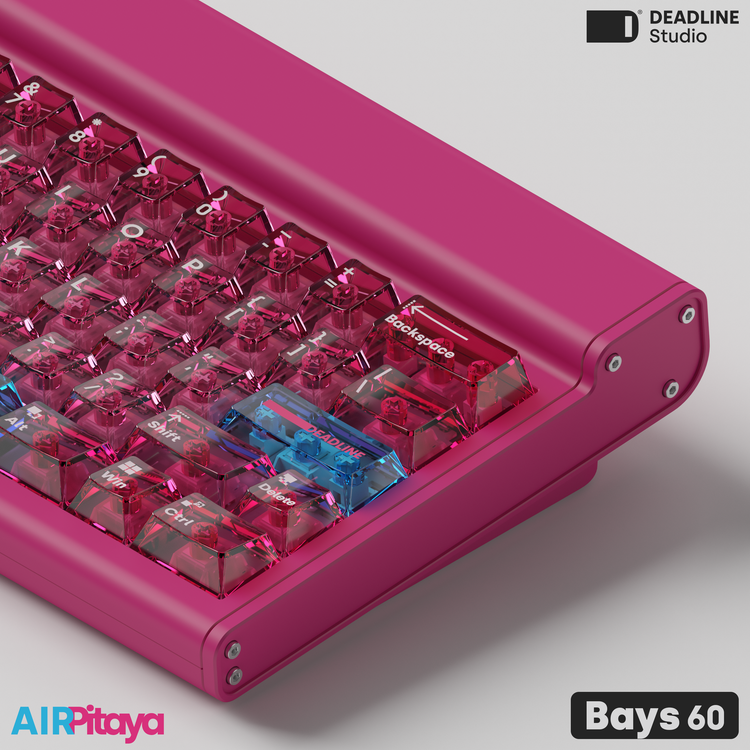

3. E-coating/Pitaya

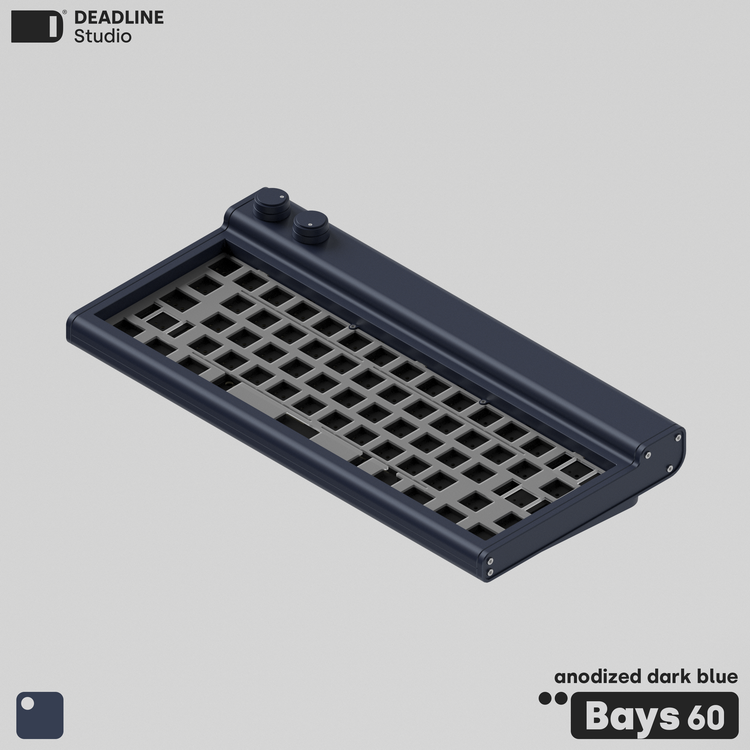

4. Aaodized/Dark blue

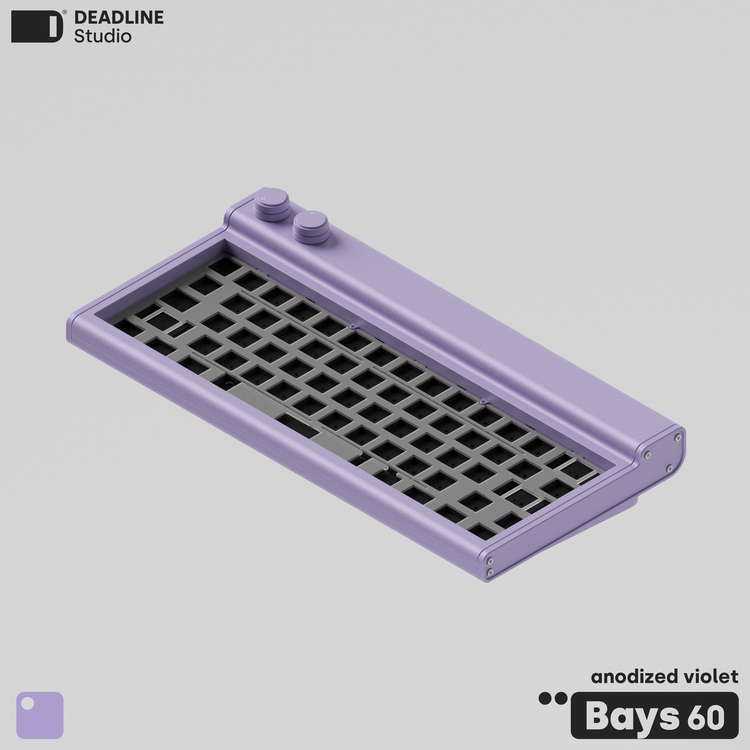

5. Aaodized/Violet

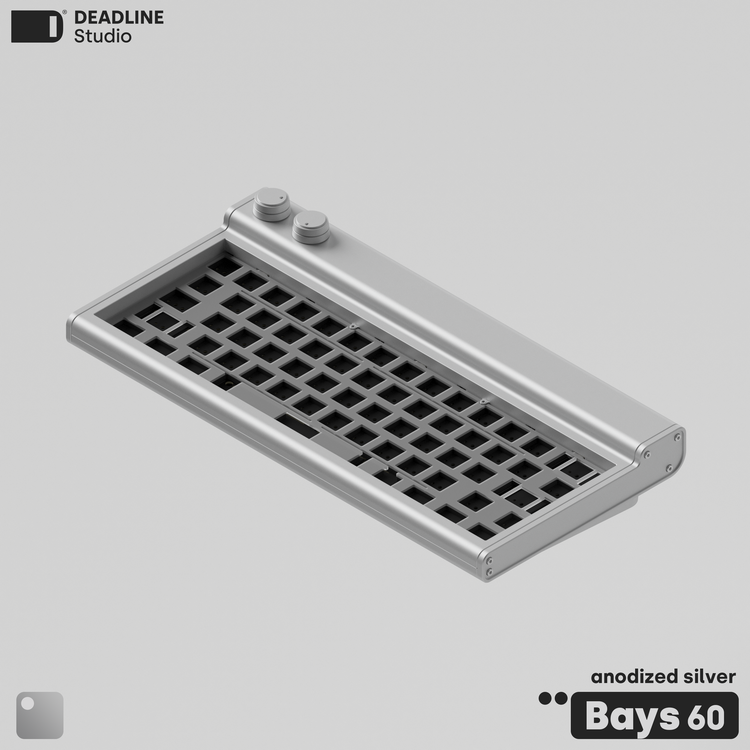

6. Aaodized /Silver

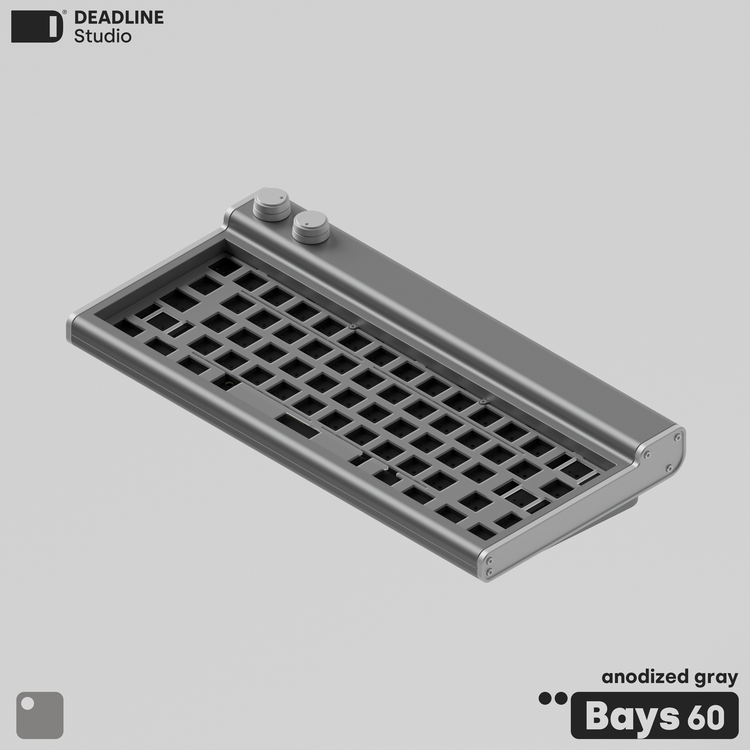

7. Aaodized/Light gray

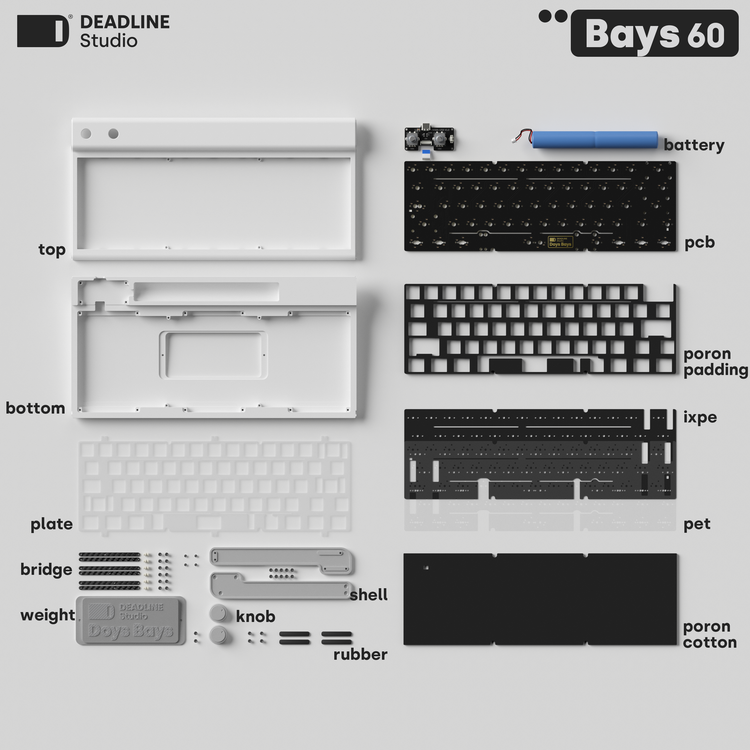

Package Includes:
1 Alu/TOP x1

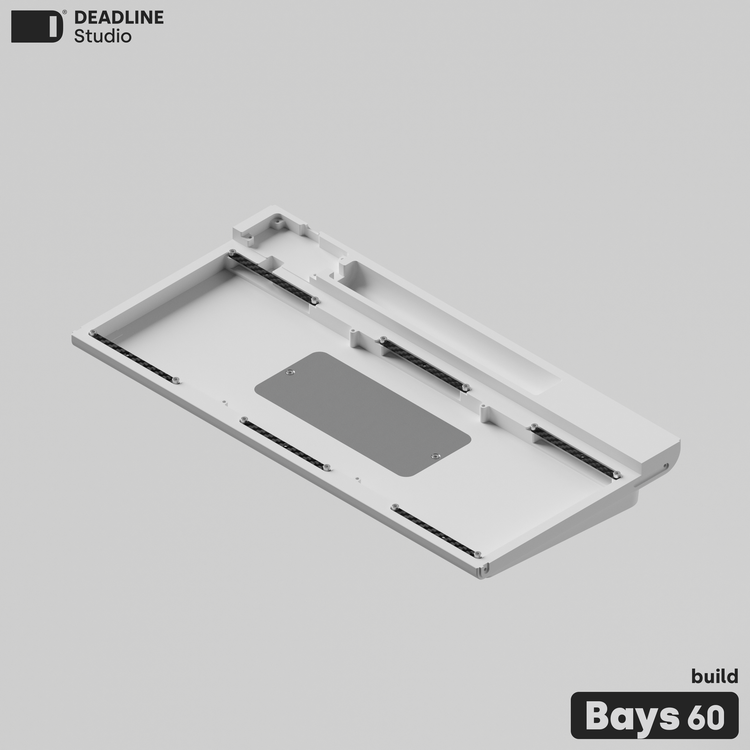

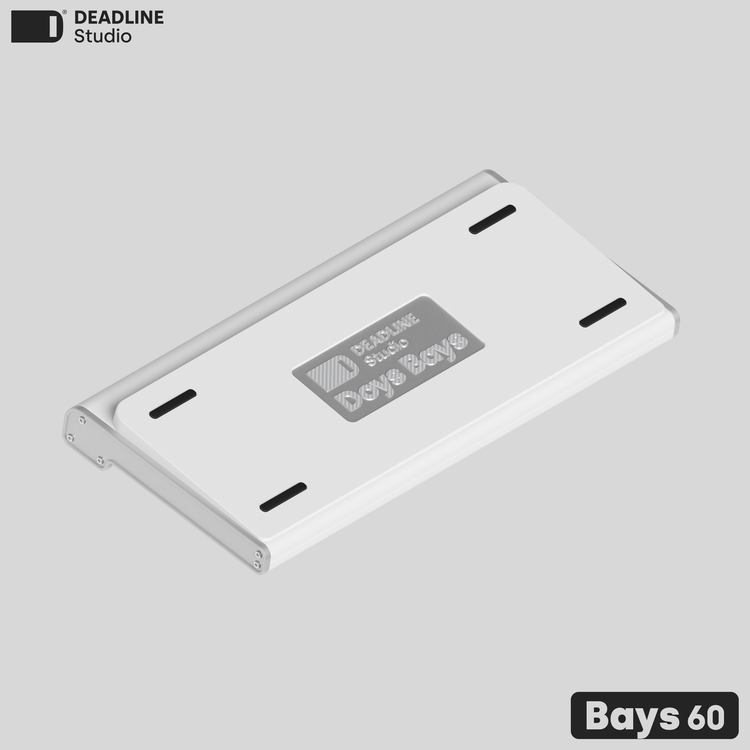

2 Alu/Bottom x1
3 PC /Plate x1
4 Bridge x1
5 Alu/Weight x1
6 Fix shell（left/right） x2
7 Knob x2
8 Rubber x6

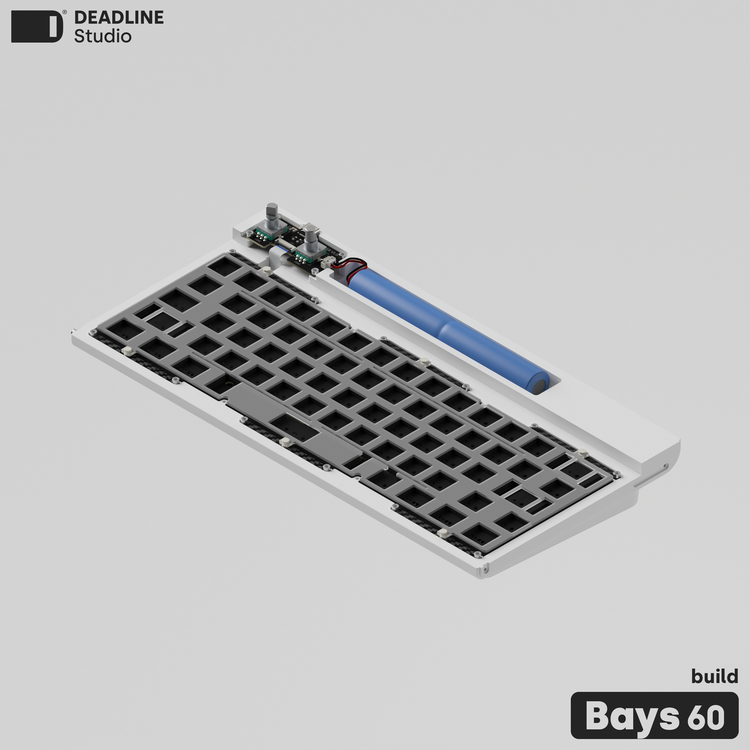

9 PCB(1.2mm/VIA/Bluetooth/hotswap) x1
10 Daughter board pcb x1
11 Battery x1

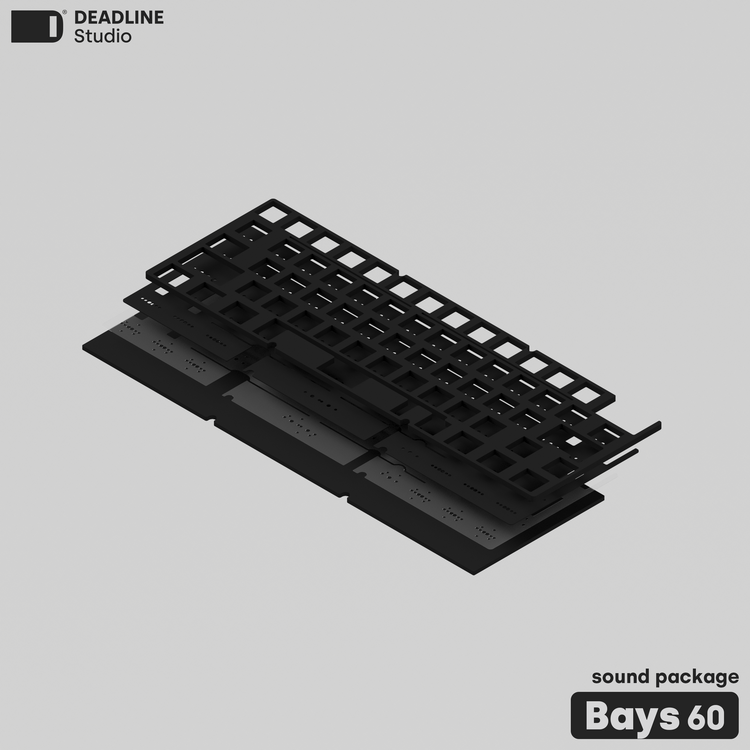

12 Poron padding x 3
13 Ixpe x1
14 Pet x1
15 Poron cottom x1

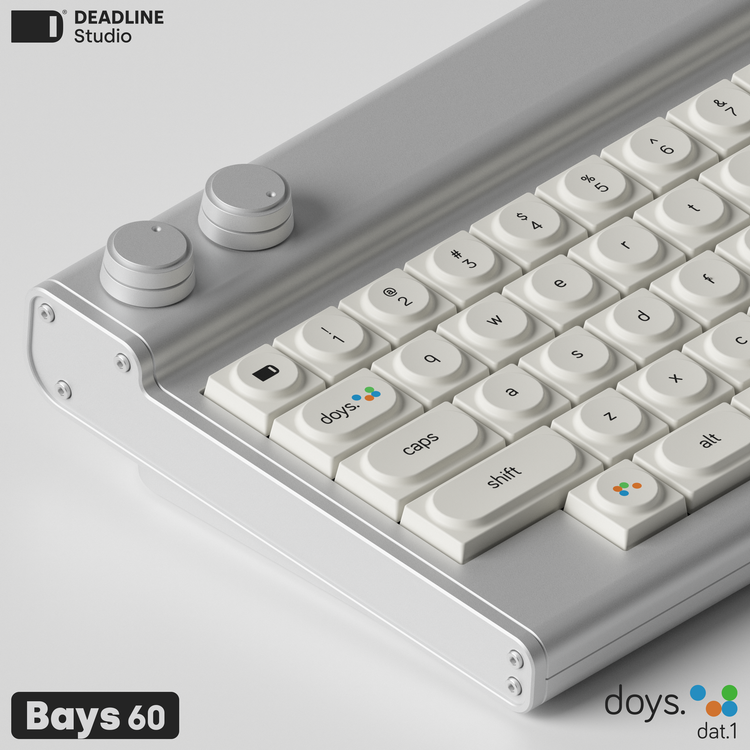

Default functions of the knobs are:
Knob 1: Volume up/Mute/Volume down
Knob 2: Previous track/Play/Pause/Next track
Each knob can be set to 3 key values in VIA, and can also be customized as needed.
