Constance TKL by Aiglatson Studio Group Buy

Translation missing: en.sections.featured_product.gallery_thumbnail_alt

Constance TKL by Aiglatson Studio Group Buy

Name: Constance TKL by Aiglatson Studio Group Buy
Brand: Aiglatson Studio
Price: 6700000.0 IDR
Availability: InStock

Rp 6.700.000

Color:Raw

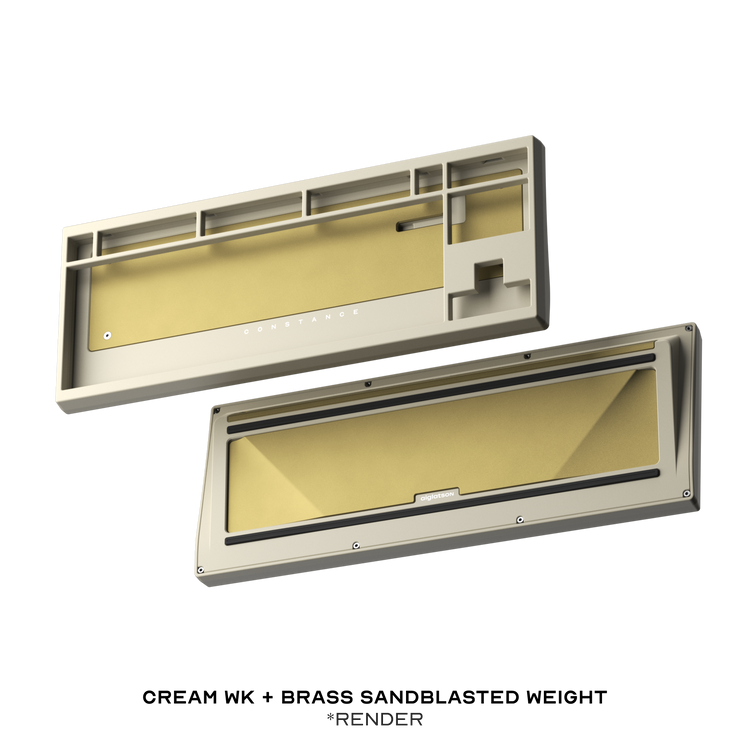

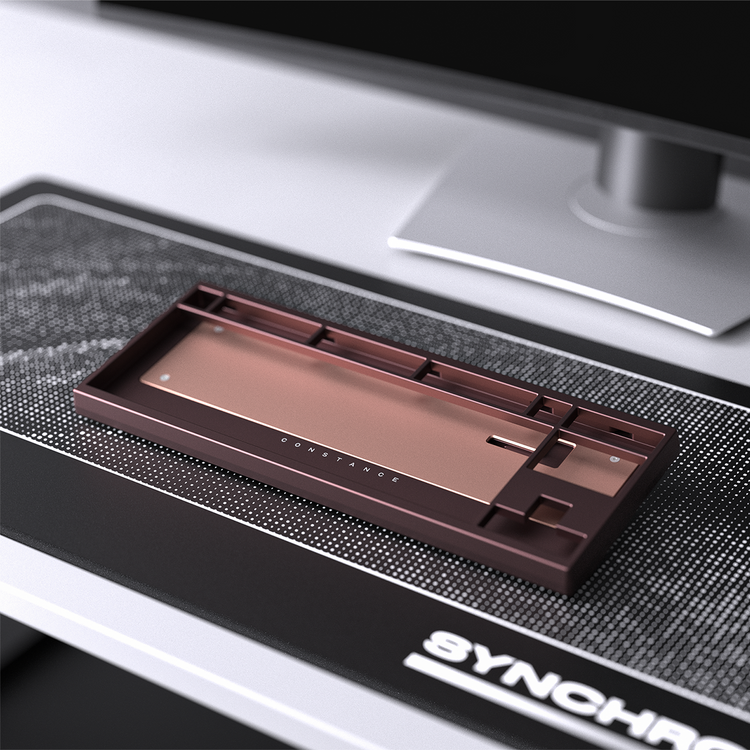

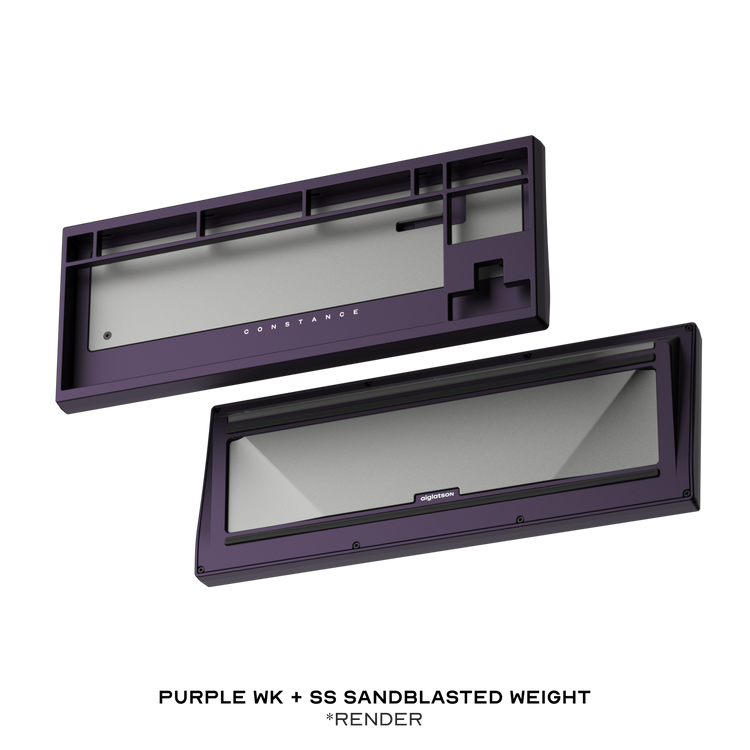

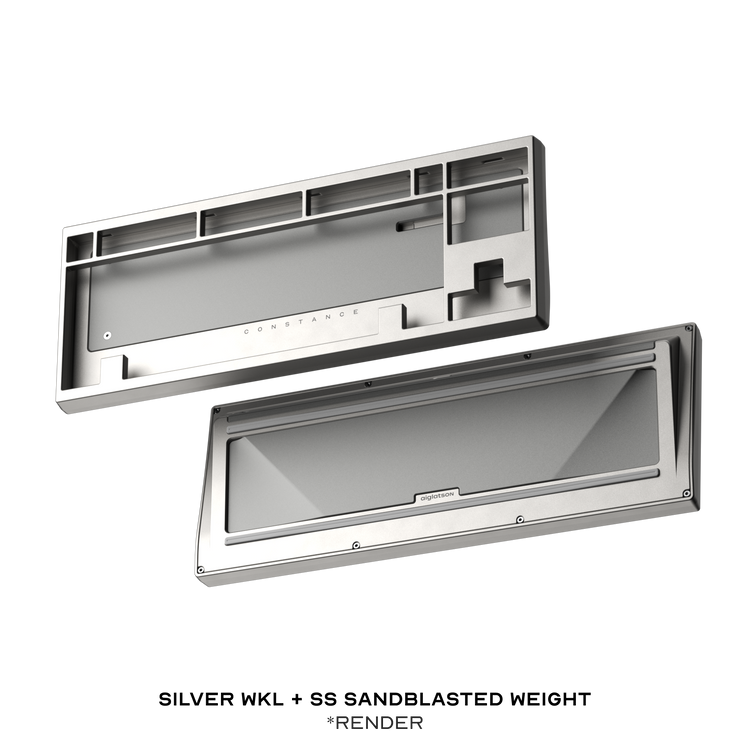

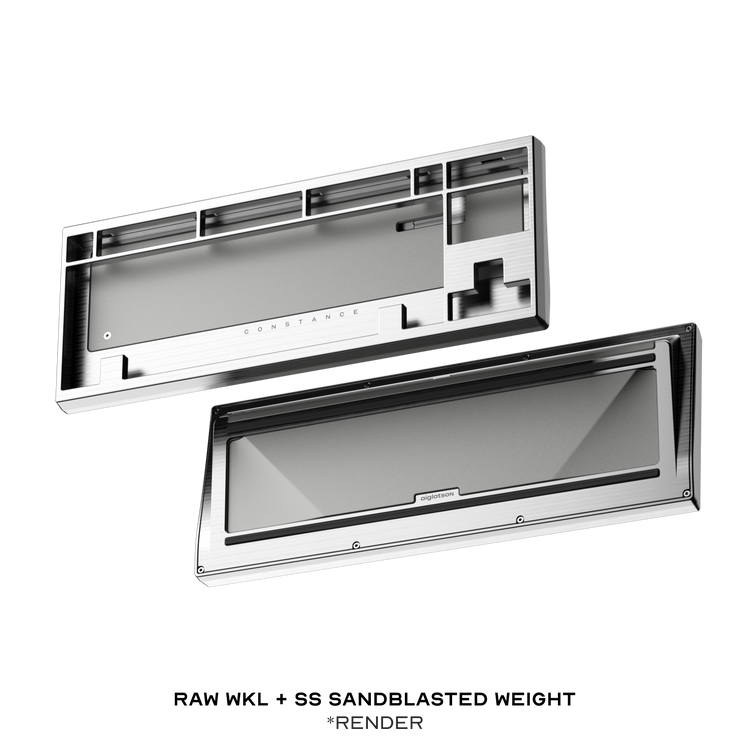

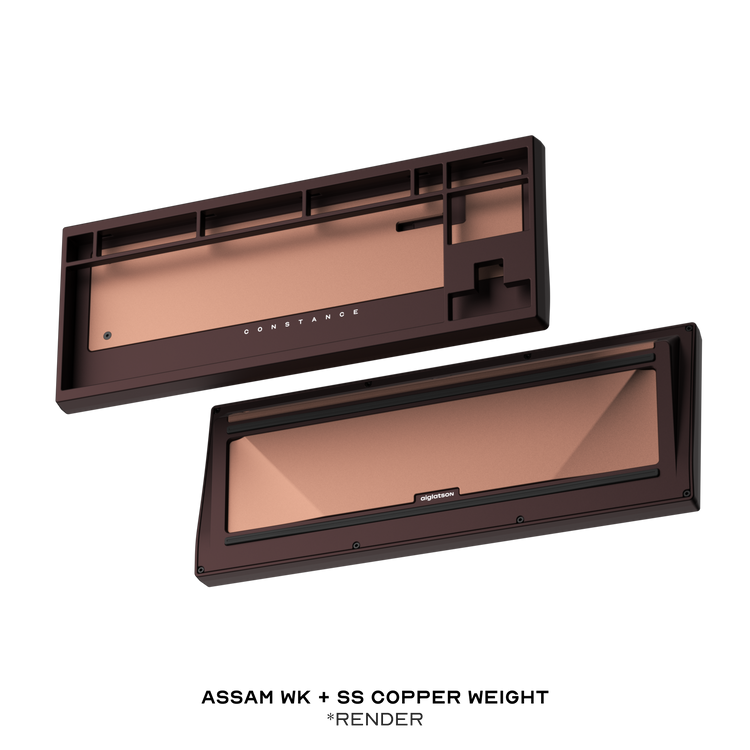

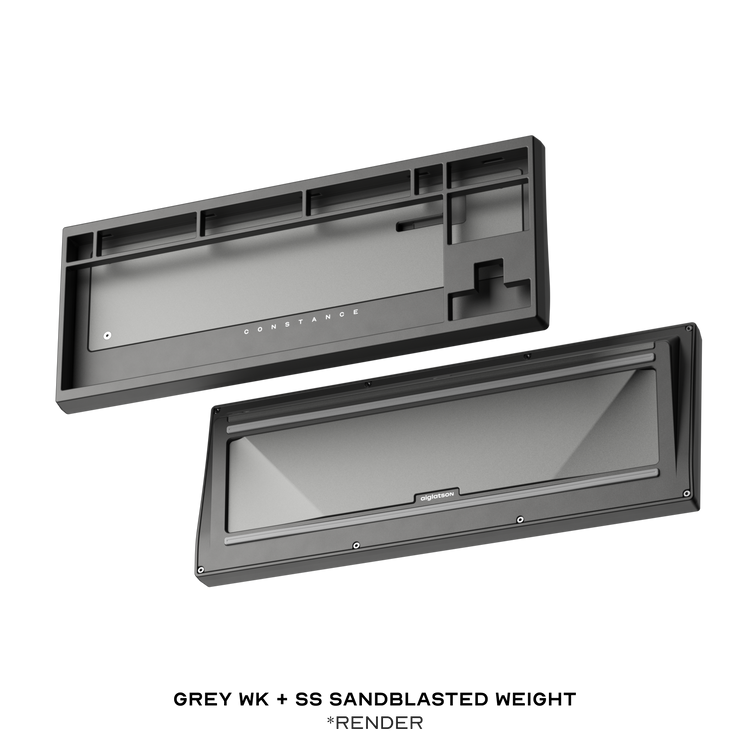

Raw Assam Black Purple Cream Silver Grey

Layout:WK (Winkey)

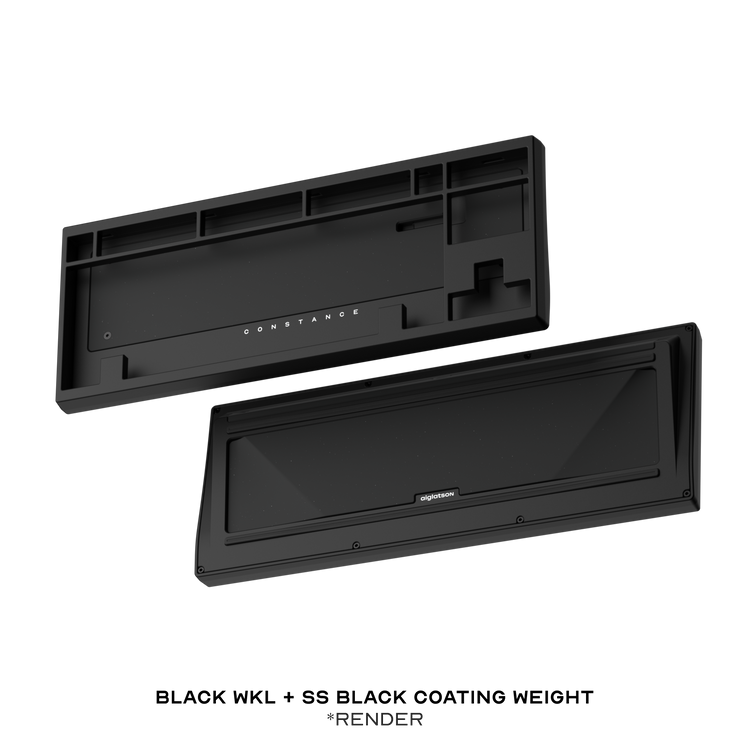

WK (Winkey) WKL (Winkeyless)

Weight Bar:Stainless Steel Sandblasted

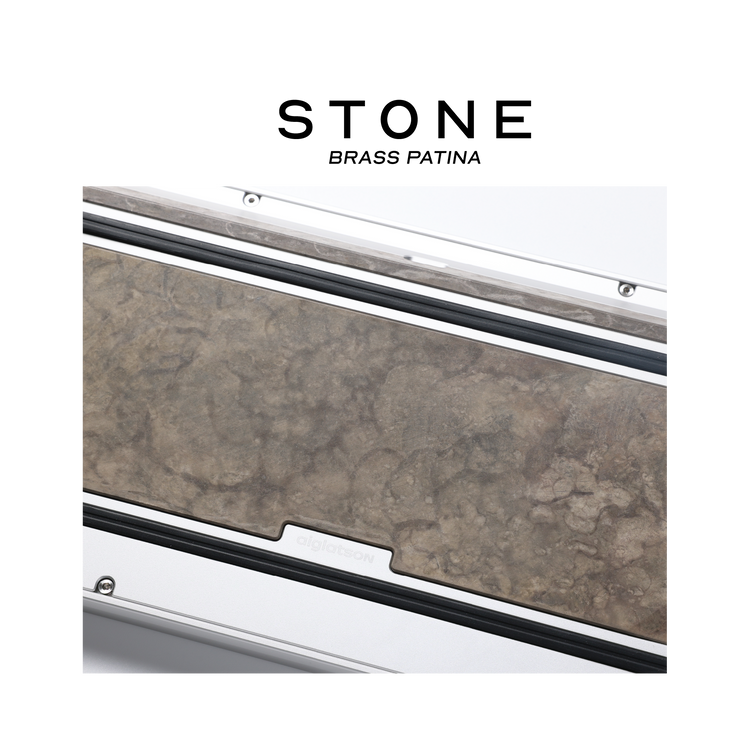

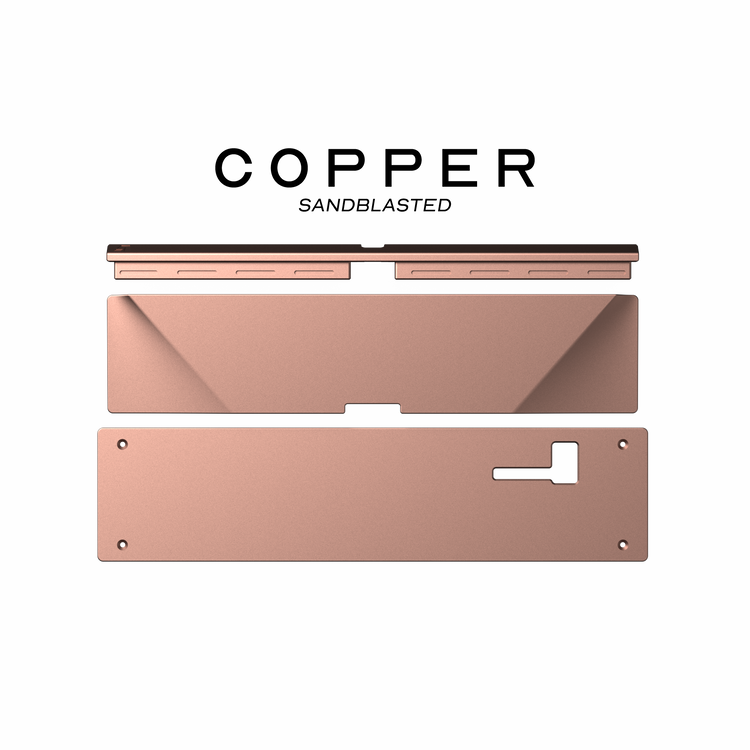

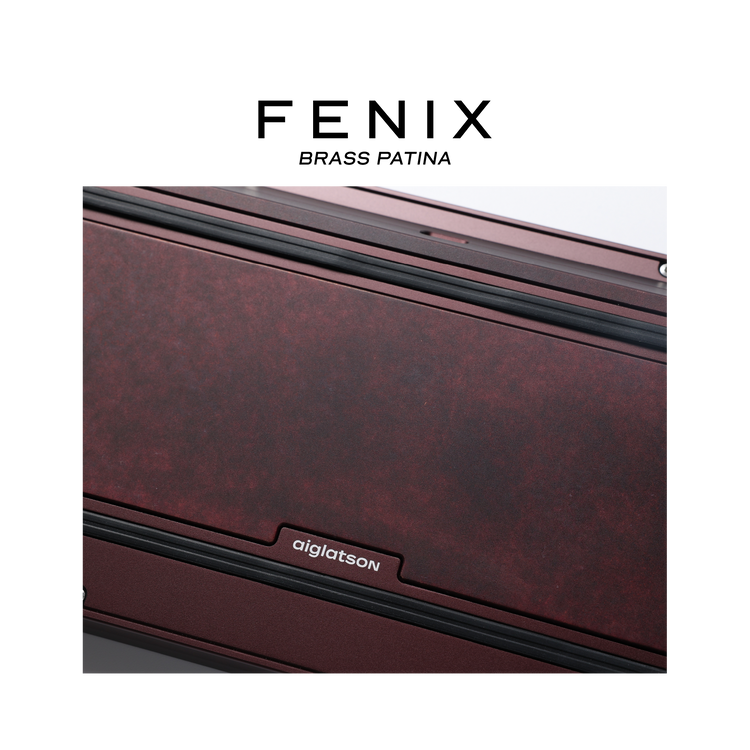

Stainless Steel Sandblasted Stainless Steel Black Coated Brass Copper Stone Patina Fenix Patina

This product is available for group buy.
The group date is October, 10th 2024 - November 11th 12024
The estimated shipping time for this product is Q2 2025-Q3 2025
Learn more about group buy here.

Introduction

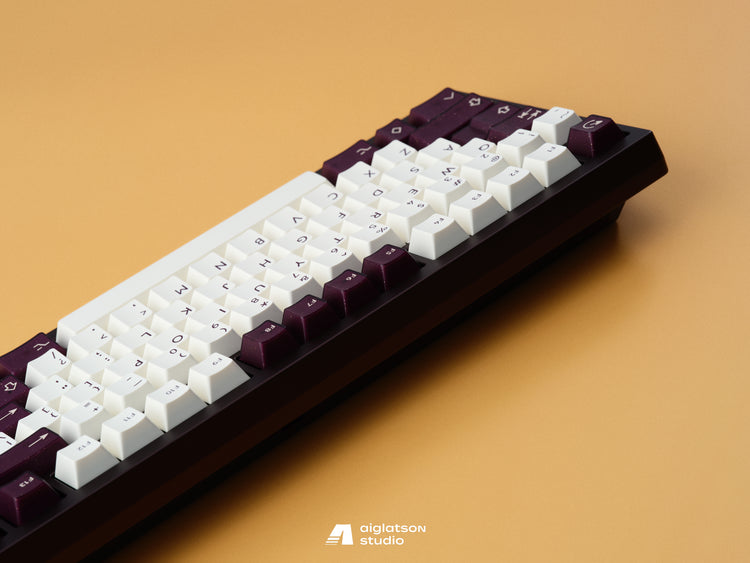

The Constance keyboard is a TKL-sized keyboard with a Split Plate Top-mount mounting. The design principle is that we want the Constance TKL to be a Daily Driver keyboard with a minimalist design but with attractive details that are not too flashy. And it also emphasizes the typing feeling and sound as much as the design.

Design

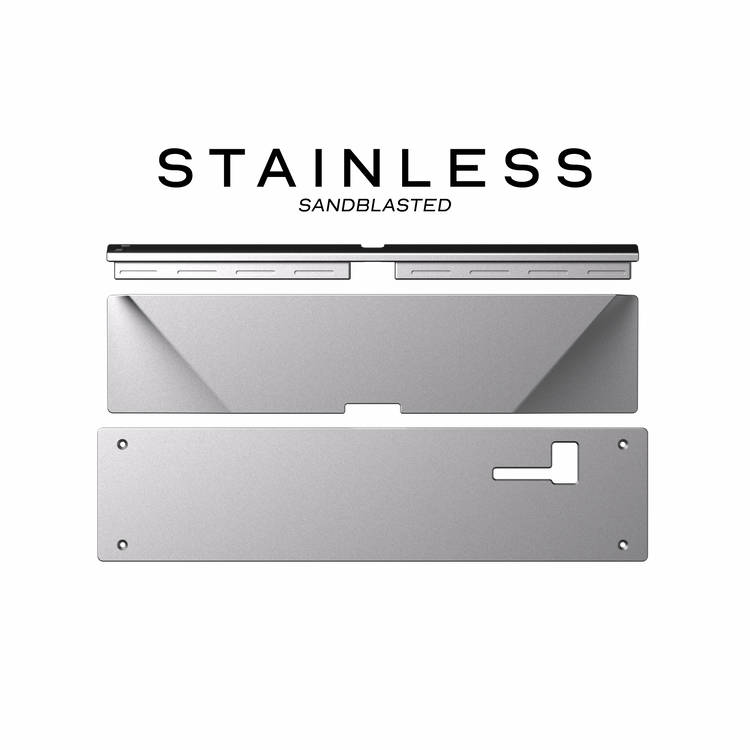

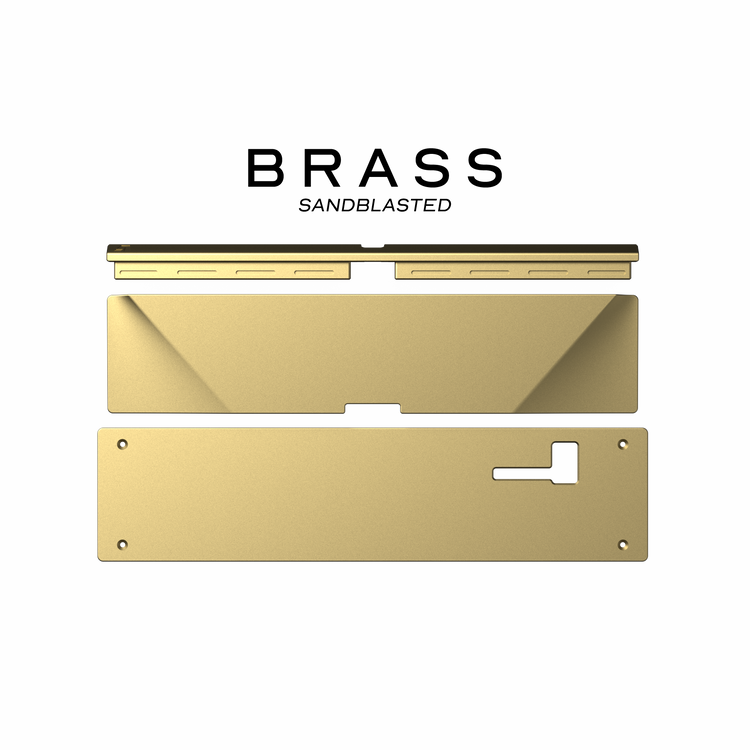

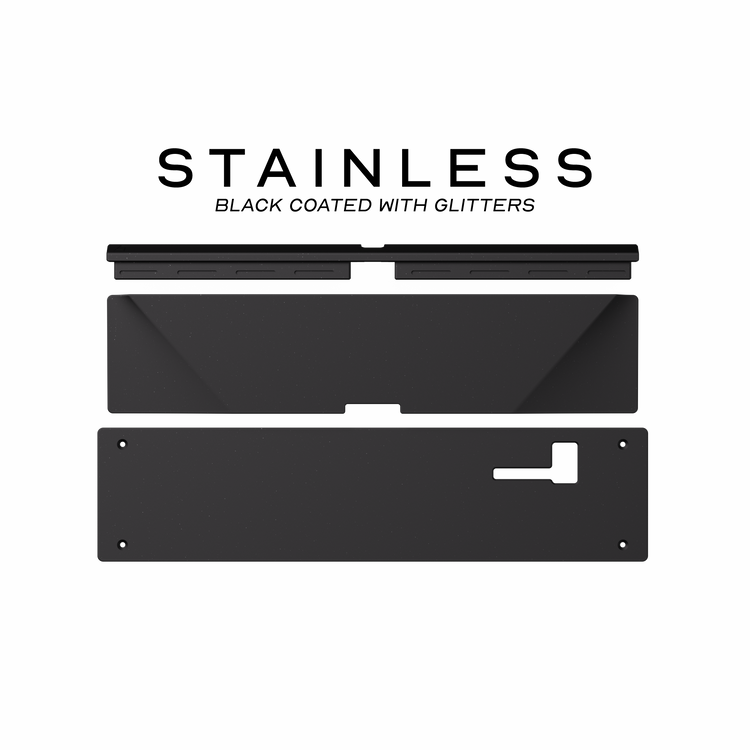

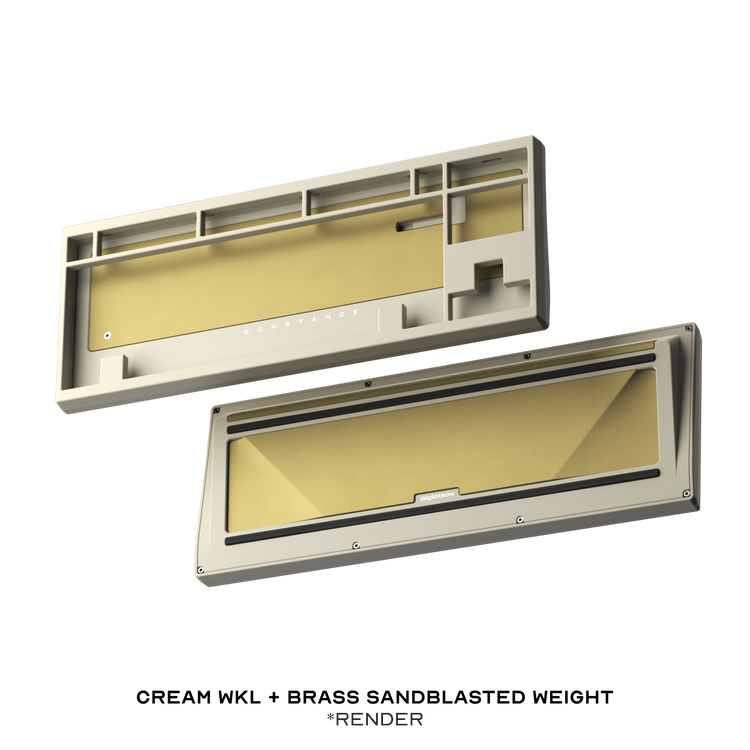

Constance TKL is a keyboard with a 9-degree typing angle, a 23.799 mm high EKH, and comes with 3 weights, an inner weight, an outer weight, and a Toblerone, resulting in a built-in weight of 3,480 grams for the brass weights and 3,420 grams for the stainless steel weights.

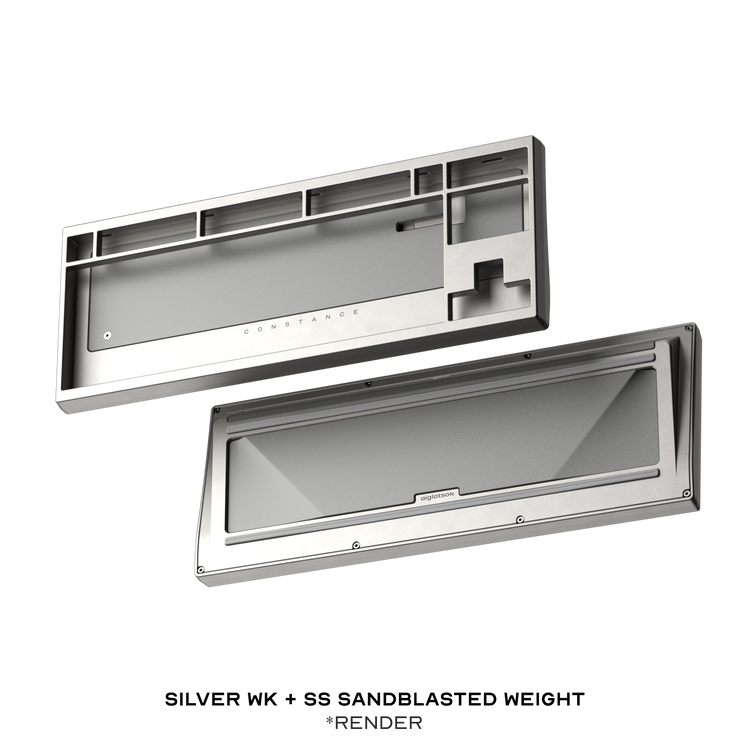

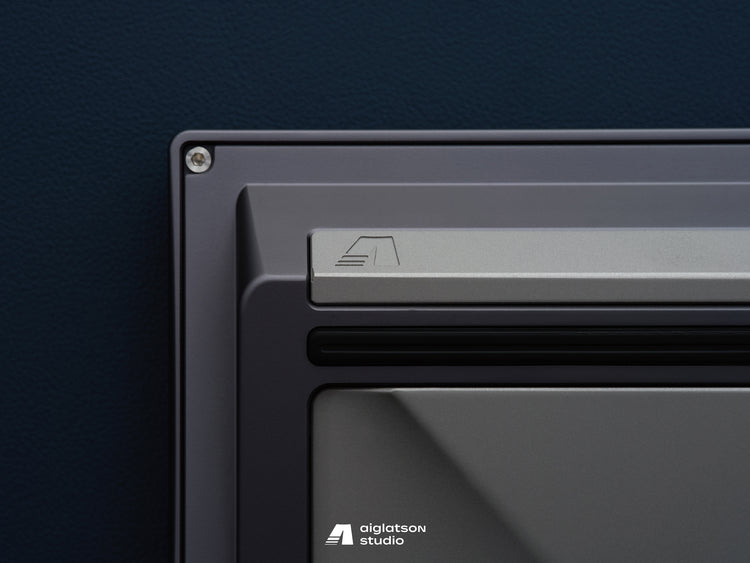

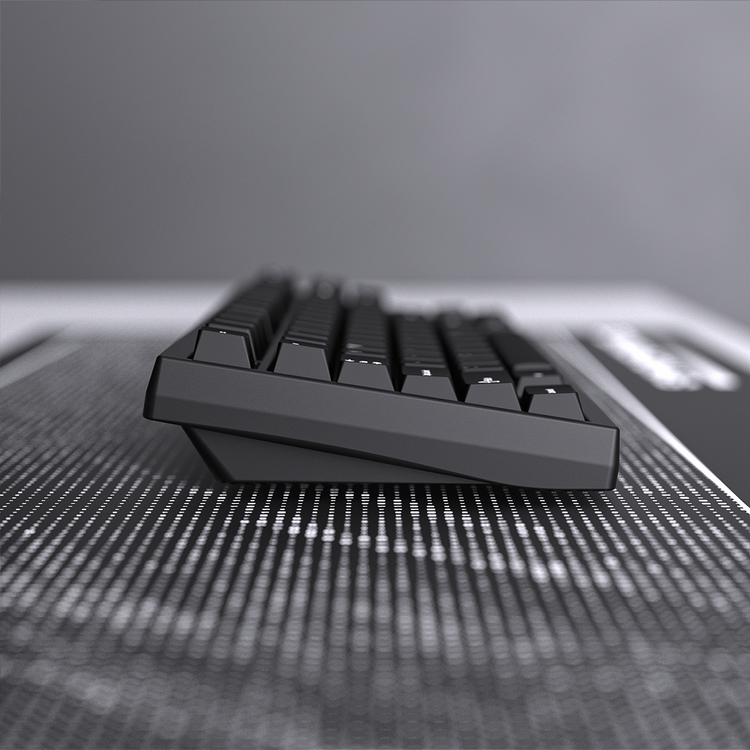

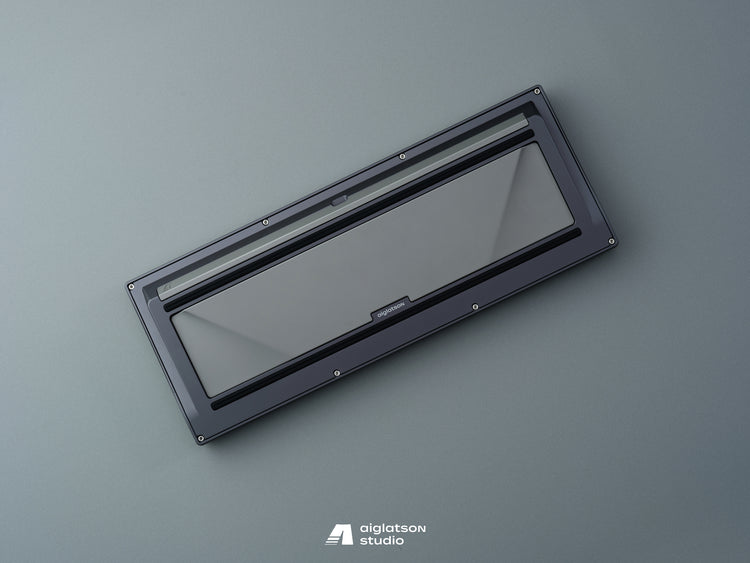

The Top Case is designed to be simple and clean, with soft-looking edges and corners. But the highlights of the board are the External Weight and Side Profile. The External Weight has a curved cut that plays with light to create dimension, and the Side Profile is the Classic HG Side, which has slightly curved cuts, making the overall design look unique, soft, and more comfortable to the eyes. Although overall this keyboard looks simple, every edge and corner has been carefully thought out for size and cutting angles, in order to make the Constance TKL design as detailed and perfect as possible.

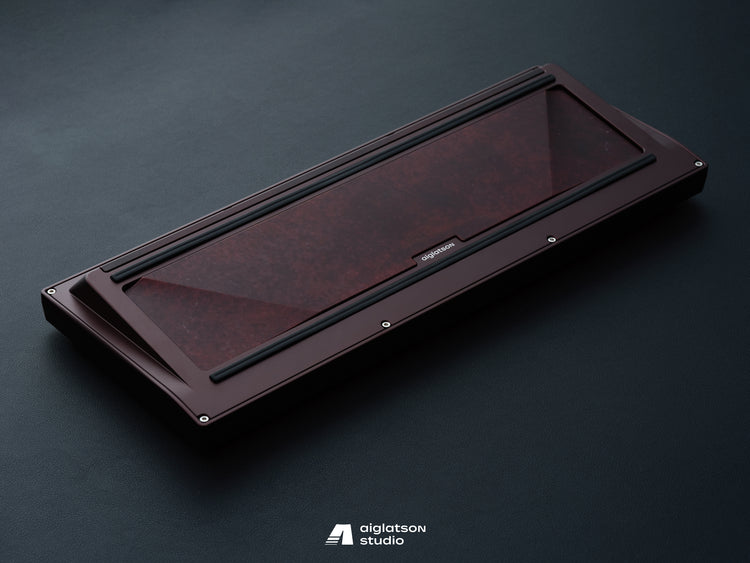

Weight

Constance PCB Layout

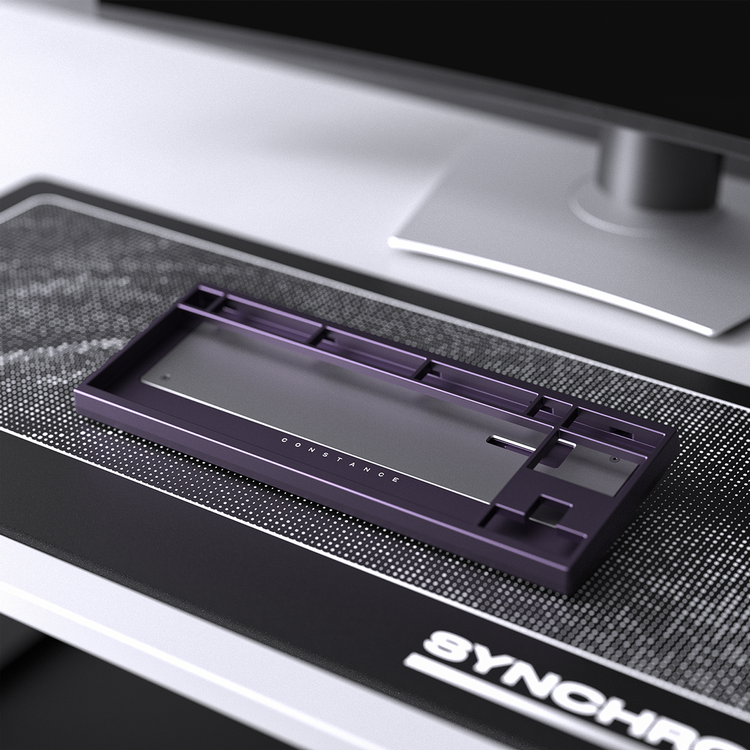

Mounting and Plate

Constance TKL is a top mount keyboard that comes with split plates similar to the Glare TKL and Albatross TKL keyboards. It will separate 60% Cluster and Function Row from the Navigator Cluster. During the development, we have experimented with both Full Plate and Split Plate. We found that the separated plate gives a higher sound profile (High Pitch) and is significantly louder, which meets our needs. In addition, the layout is symmetrical, making the mounting points symmetrical for a stable and consistent typing feel. We have also added a cutout between the Function Row and Number Row (Aluminum Plate and Carbon Fiber Plate only) to increase the flex of the Alpha for the rigid plate.

Specs

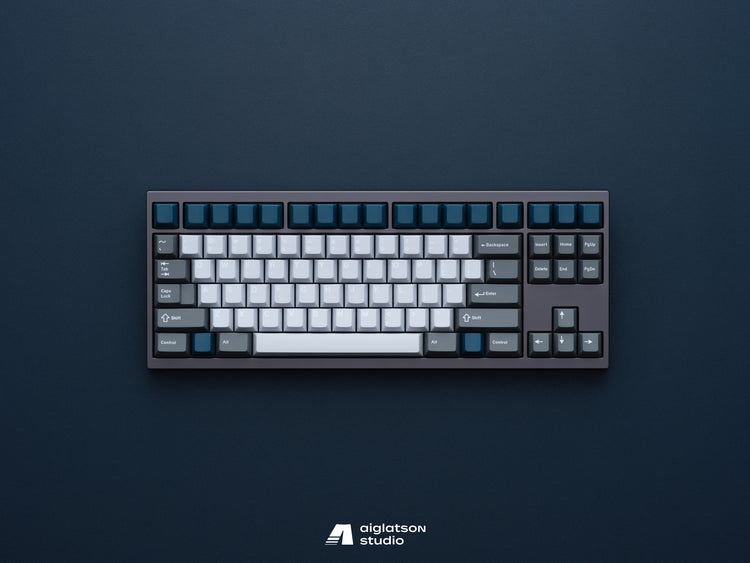

- Layout: F13 TKL (88%) WK and WKL
- Mounting: Split-plate top mount
- Typing Angle: 9 Degrees
- Materials: Aluminium 6063 case with brass (sandblasted, spray coated, Patina), stainless steel (sandblasted), or copper (sandblasted) weights
- Front Height: 18.5 mm, EKH 23.799 mm
- Plate Options: Aluminium Full/Half, Carbon Fiber Full/Half, Polycarbonate Full/Half, and - Polypropylene Full/Half
- PCB: 1.6 mm FR4 + daughter board
- Weight (Built): Approximately 3,480g (Brass weights), 3,420 g (Stainless steel weights)
- The PCB and Plate are not included in the keyboard kit and must be purchased separately as an add-on.

What's included

1x Top case
1x Bottom case
1x Internal weight
1x External weight
1x Toblerone weight
1x Plate of your choice
2x Black Feets
1x Carrying Case
1x Screws and packaging

Vendors

Global: Kbdfans
US: Divinikeys
KR: Geonworks
EU: Delta Key Co
UK: Prototypist
OCE: Cafege
VT: MOKB
CA: Minokeys
SG: ilumkb
ID: Kukey Studio
TH: Aiglatson Studio
MY: Mecha
IN: Neo Macro
