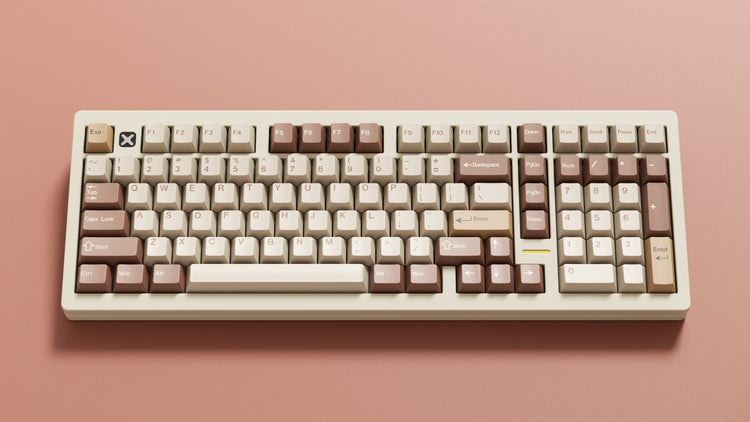

Wind x98 R2 by Wind Studio Normal Layout Group Buy

This product is available for group buy.
The groupbuy date is 28th December 2023 - 11th January 2024
The estimated shipping time for this product is 3-6 months after the GB.
Learn more about group buy here.

Shop Wind x98 R2 Add on Extra here.

Shop Wind x98 R2 Southpaw layout here.

Wind x98 R2 PCB

The PCB layout of group buy order will be updated as this.

The normal pcb and the southpaw pcb is compatible,for hotswap pcb, no need to solder sockets, only need to change the direction of switches then can use ISO layout.

Normal or Southpaw

You can experience both normal and southpaw keyboards by replacing top case.

You can build ANSI or ISO hot-swap layout freedom,no need to solder sockets, only need to change the direction of switches.

PC front accent pieces for those who want a CAPS indicator light. You can buy extra brass piece if you do not want caps light. The light can change or turn off on VIAL (bluetooth pcb change on LDN).

Split PCB and plate,1.6mm no flex cut pcb with 1.5mm plate, bring comfortable typing experience.

Wind x98 R2 Features

• Provide streamlined and familiar typing experience with 2U 0 key.
• Visual symmetry by keeping the arrow keys level with the rest of the board.
• 3 customizable keys on the left side of numpad
• A PVD logo brings more visual enjoyment
• Top mount，plate gasket mount



Specs

• Size: 40.75*14.4*3.6cm
• 7° Typing angle
• 65% + Numpad + F Row
• TOP mount and PCB gasket mount design
• Price： Wired $320,Bluetooth $335
• PCB:1.6mm no flex cut black core board fr4.

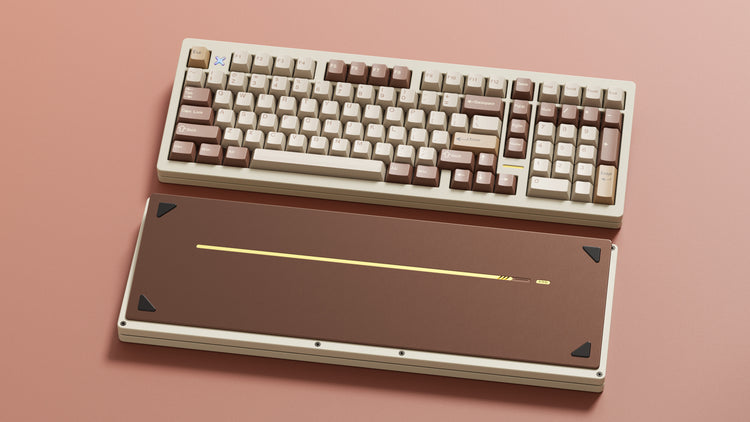

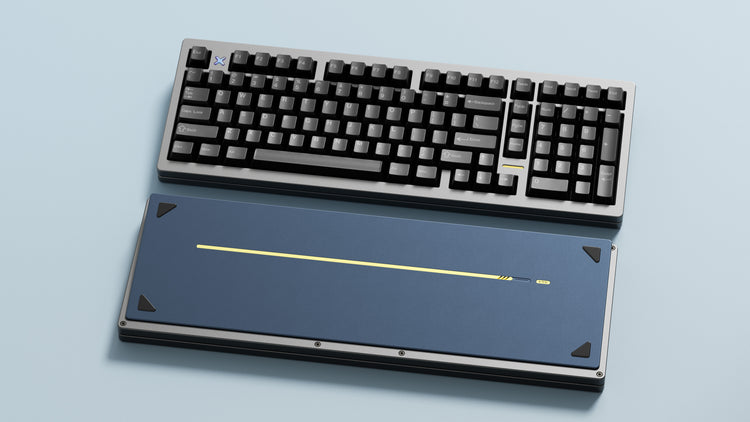

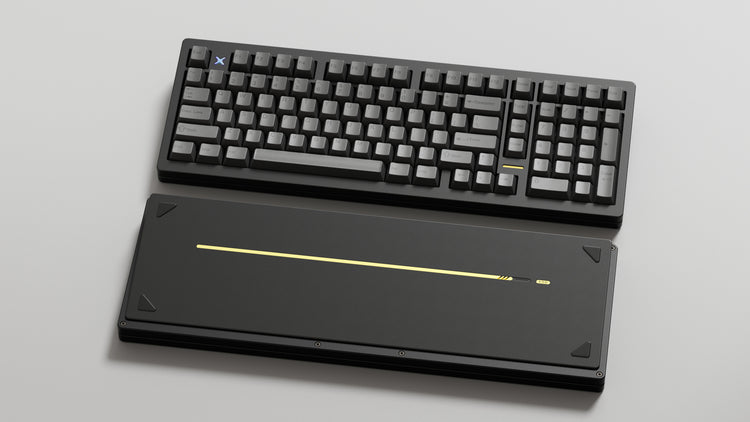

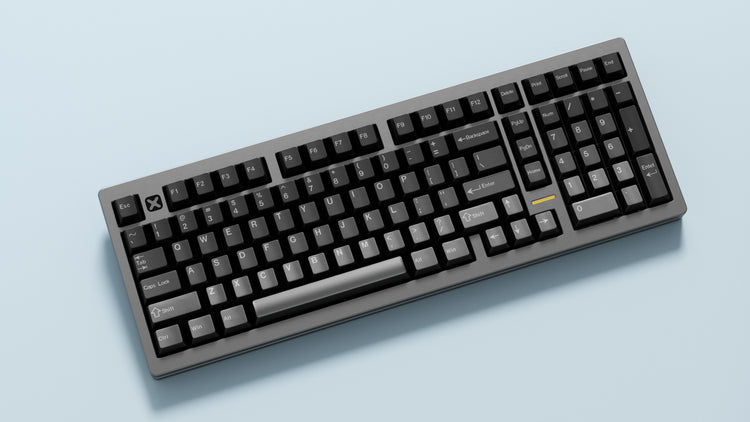

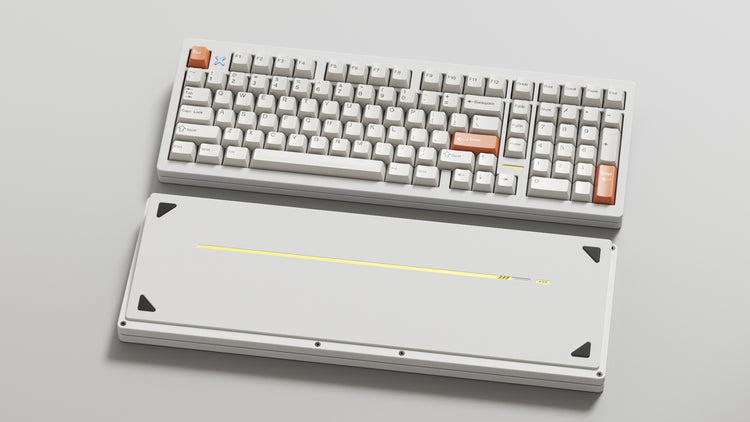

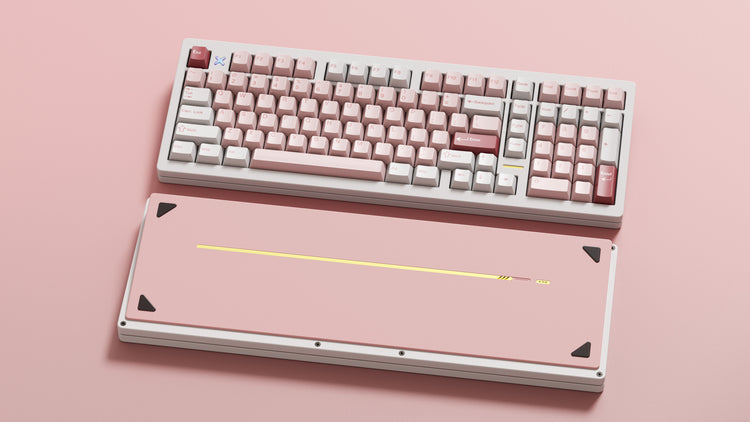

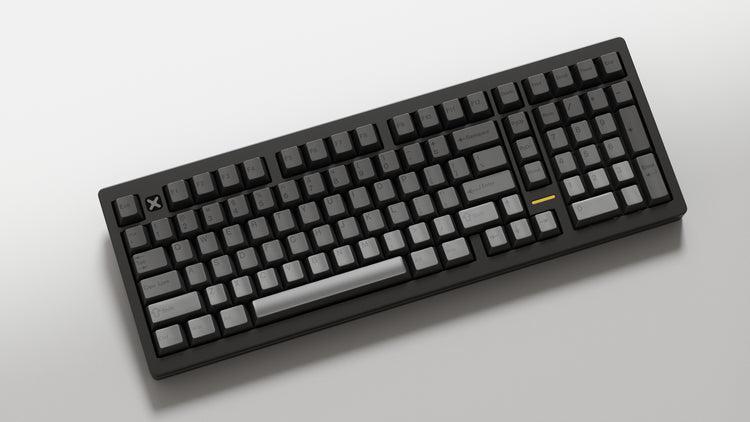

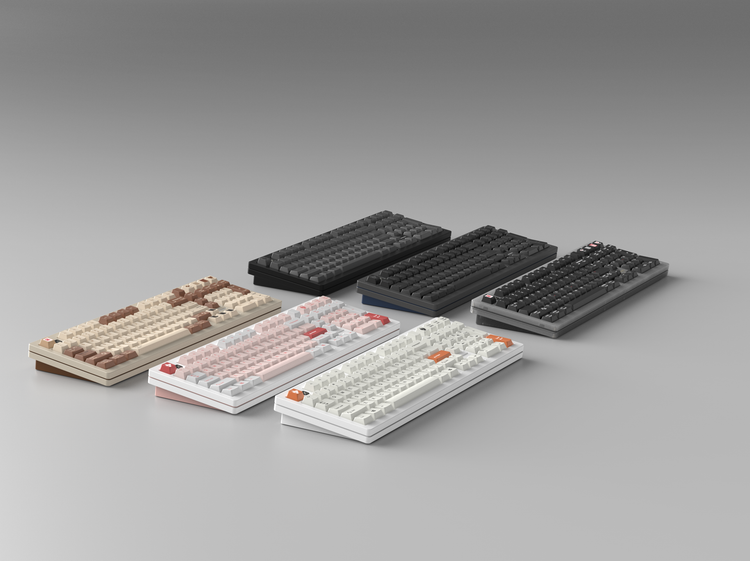

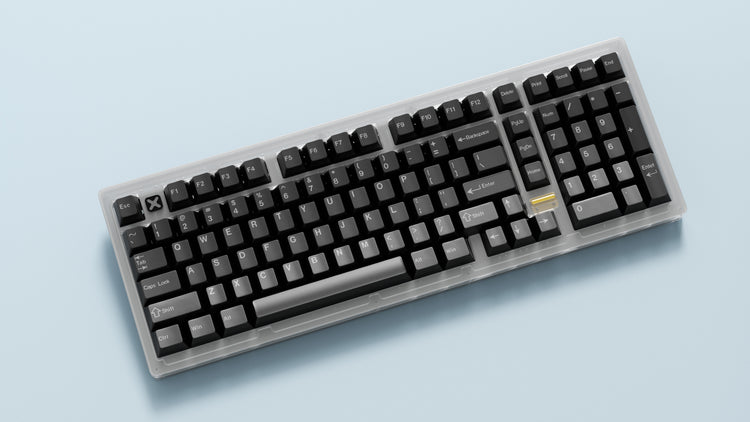

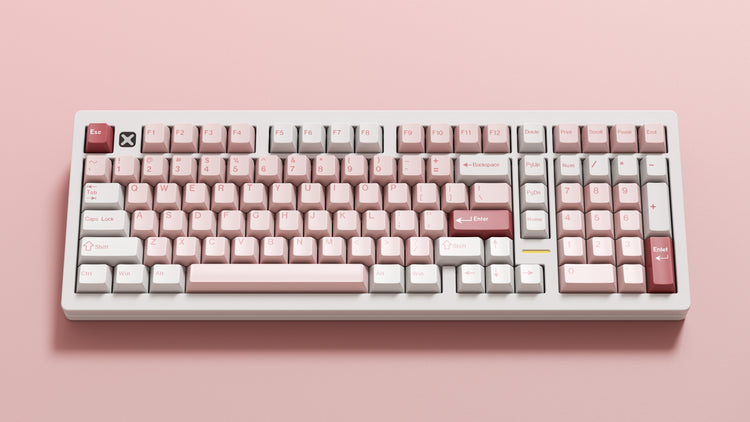

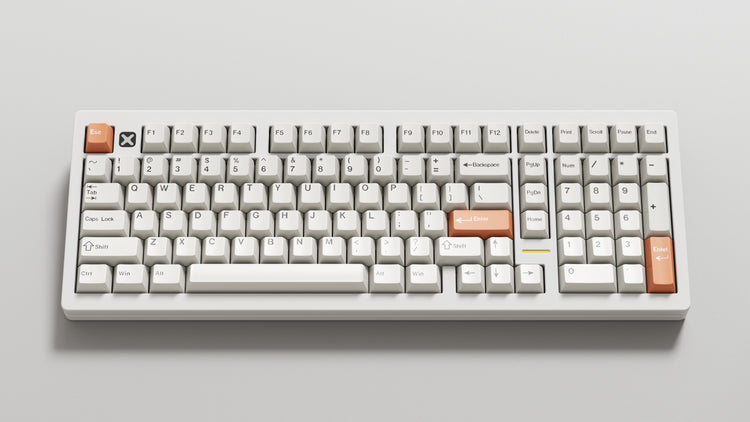

• Case material:E-White+E-Pink(6063Alu, cataphoresis), E-White+E-White(6063Alu, cataphoresis), Creamy white(6063Alu, cataphoresis)+Brown 7584u(6063Alu, anodized), Black+Black(6063Alu, anodized), Grey 416U+Blue 288U (6063Alu, anodized), Semitransparent(PC)
• Plate: 1.5mm
• WIND X98 R2 Bluetooth PCB polling rate: 1000hz in wired mode，800hz in bluetooth mode.
• WIND X98 R2 Bluetooth PCB Latency Rate：1.25ms
• WIND X98 R2 Wired Polling Rate: 1000hz
• Wired pcb support VIAL, bluetooth pcb support LDN(with 3000mah battery)

Package Includes

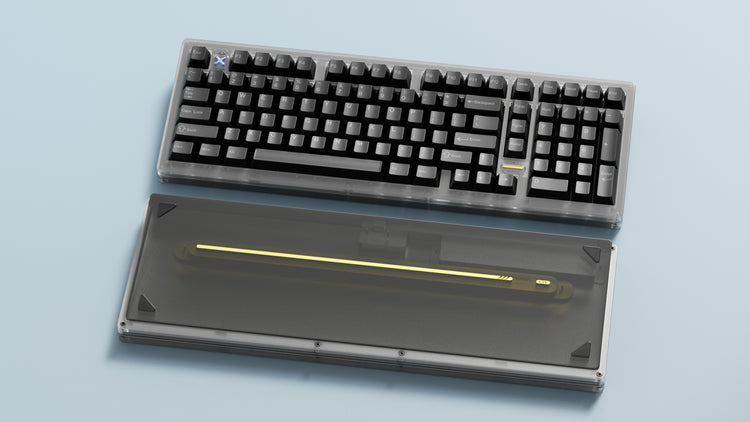

• X98 keyboard case(top case/bottom case)
• 1.6mm No Flex Cut PCB Optional
• 1.5mm PC Plate
• PC front accent piece
• X PVD logo or Square logo
• Foam kit（1mm poron + 2mm poron + 2mm hotswap foam + 0.5mm IXPE sheet + 3.5mm poron）
• Gateron stabilizers set(6*2U, 1*6.25U)
• Brass weight
• User guide
• Accessories Bag
